POWER CONCEPT UNINTERRUPTIBLE POWER SOLUTIONS

ADC’s approach to engineering mission critical facilities is informed by our understanding of the crucial role these facilities play in the process, transport and storage of data integral to our clients’ effective business operations. The distribution systems we engineer incorporate dual/diverse and redundant paths of power for 99.999% infrastructure uptime and allow the end user to concurrently maintain these systems without disrupting the critical loads. We ensure that these technology spaces have an expandable and flexible infrastructure, as well as environmental conditions that are reliable, stable and safe from outside influences.

ADC’ portfolio of mission critical facilities includes data centers, trading installations, telecom digital switch installations, broadcasting facilities, web hosting sites, etc. Our goal is to assist our clients in creating mission critical facilities that experience Zero Downtime, exceed their expectations for innovation and service, and stay within the established project budgets.

Our solutions are based on our decision to apply latest UPS technology, safeguarding a reliable source of power, free from all forms of mains disturbance, within the tolerance thresholds compatible with the requisites of electronic equipment.

High power density with small footprint, battery free flywheel UPS solutions
High power capacity with Modular N + 1 configuration
Second generation transformer-less three phase UPS Technology – IGBT rectifier.
Medium-sized Power Protection range with outstanding cost efficiency/performance
Single phase power protection solution in the range of 600-3000VA

High power density with small footprint, battery free flywheel UPS solutions

Model	Capacity Range & Features

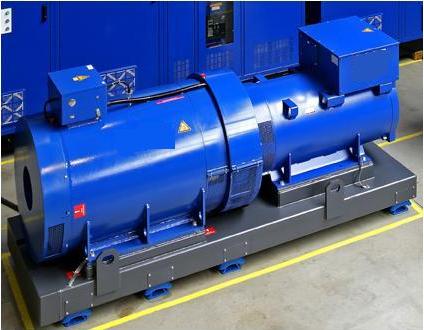

Power Concept Rotary Uninterruptible Power Supply	500kVA to 2400kVA Frequency : 50 and 60 Hz Voltage : 380 to 480 V Medium voltage from 630 kVA, 6.6KV, 11KV, 20K

The dynamic/rotary UPS systems, using a kinetic energy accumulator, are widely recognised as an advanced reliable solution for the power protection of critical loads and applications. The power output of single dynamic UPS modules generally higher than that of static UPS systems, making them the only viable alternative for the protection of important critical loads (semiconductor industry or runway lighting in airports for example).

5% internal reactance
‘soft’ transfer to diesel
accu-rotor speed limited to only 1500 RPM
2 services (critical and non-critical)
smaller footprint per kVA
brushless technology
Downstream voltage regulation
No re-injection of harmonic currents upstream
Filtration of existing harmonics (the choke combined with the alternator attenuates the voltage harmonics)
The alternator is specially designed to deliver a very low internal reactance, allowing:
- very low transient voltage drop with load variation
to withstand high peak current created by :
- motor starting
- magnetisation of transformers
- PWM power supply
- fast clearing of short circuit currents occurring downstream– excellent discrimination
No influence of any upstream disturbances such as :
- short circuit
- high steep gradient disturbances (lightning & switching pulses)
- micro cuts
- voltage drops
- phase unbalance

High power capacity with Modular N + 1 configuration

Suitable for sophisticated need of data centres of more than 1000 sq ft. Applications: Computer rooms, Multiple servers, Data centers, Plant floors, telecommunication systems, banking and financial institutions, medical applications.

Model	Capacity Range & Features

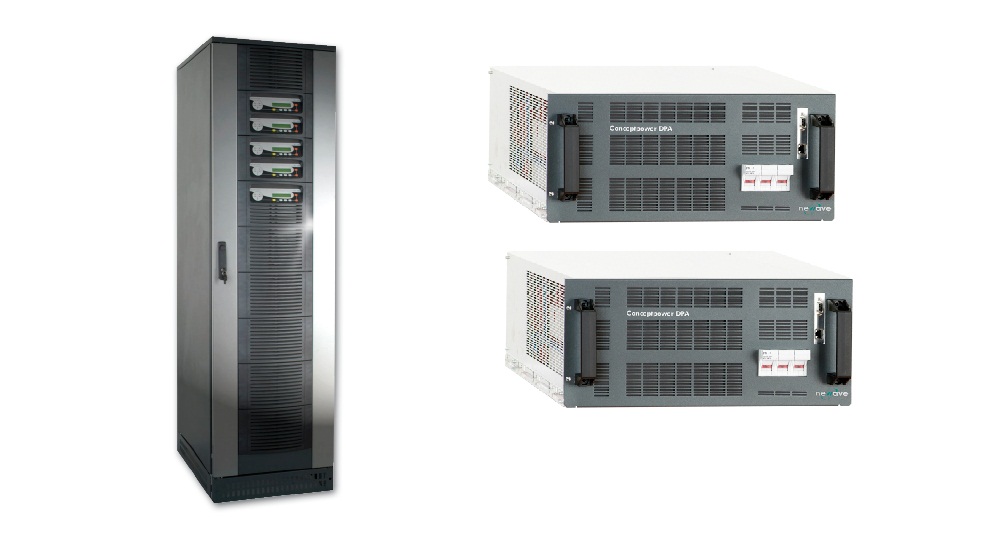

Power Concept Megawave Modular Hot Swappable N + 1	- 10kVA/15kVA/20kVA/30kVA/40kVA (upgradeable to 120kVA) - 80kVA/100kVA (upgradeable to 300kVA)
	GREEN Transformer-less UPS-Technology simple input rectifier with THDI<8% input power factor >0.98 high efficiency up to 94% separate ripple-free battery charger energy saving inverter stage Smallest footprint with minimum pace required Easy for transportation and reusable for expansion - RECYCLING

/td>

Second generation transformer-less three phase UPS Technology – IGBT rectifier.

Standalone advanced double conversion UPS protects your mission critical load and your environment, meeting the requirements of data processing, telecommunications, and industrial applications.

Model	Capacity Range & Features

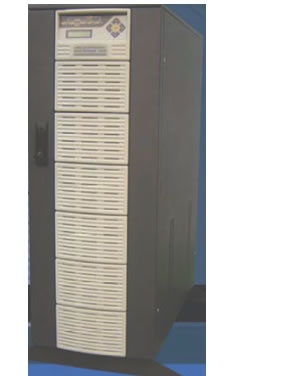

Power Concept Cleanwave	10kVA to 500kVA
	The Power Concept Cleanwave responds fully to both highest availability and environmentally friendly requirements. In other words the Power Concept Cleanwave simultaneously protects the critical load and your environment. Furthermore your cost of ownership will be low during the entire lifecycle of the UPS system. Thanks to the unique and highest three phase double conversion efficiency, low mains harmonic pollution, low audible noise and optimized material contents. High input power factor, >0.98 Low input current THDI, <5% High efficiency up to 93% Static and maintenance by-pass

Medium-sized Power Protection range with outstanding cost efficiency/performance

Power Concept Truewave represents an accurately balanced combination of unmatched reliability, and outstanding cost-efficiency housed in one enclosure. It is designed to protect a wide area of critical applications including server rooms, networks, telecommunication systems, industrial processes and medical equipment.

Model	Capacity Range & Features
Power Concept Truewave	10kVA to 300kVA
	Galvanic Isolation Transformer at the inverter output 6 pulses, 12 pulses or 18 pulses rectifier configuration rectifier configuration Static and maintenance by-pass Advanced LCD panel providing detailed information (input/output voltage, battery voltage, charging current, interior temperature) and setting user selectable parameters. 3 Microprocessors: Main controller board, rectifier board and optional parallel control board 64 recorded event history Calendar and time indicator Advanced automatic and manual battery test system Dial up modem direct connection and AT command set built in. RS232 and dry contacts for communication and remote monitoring Input/Output customization, possible SNMP compatible communication Compatible with international standards

Single phase power protection solution in the range of 600-3000VA

Typical Application: Single or multiple PC’s, Servers, network switches, hubs and modems, sensitive electronic equipment, Small PBX’s. Standby times: 10 minutes to several hours.

Model	Capacity Range & Features
Power Concept Netwave	450VA to 3000VA
	Pure sinewave output Rack mount version optional Boost and buck Automatic Voltage Regulator Hot swappable battery replacement by user Smart RS 232 communication port Lightning and Surge protection Short circuit and load protection 50/60Hz auto sensing Fully digitized microprocessor controlled Tel/modem internet spike protection SNMP communication (optional)
